Manufactured from ASTM A105 forged carbon steel, the 90° Socket weld elbow is ideal for high pressure, high temperature systems for handling oils, fuels and chemicals. The fitting is to be used with seamless steel tube A106 Grade B. The fitting has an operating pressure of up to 3000lb/ 3000psi (206 bar) with a temperature range 0°C -450°C

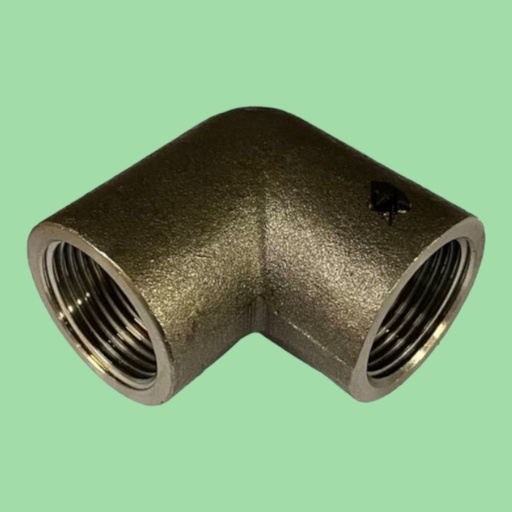

Manufactured in the EU to EN 10241
Used with steel tube EN 10255 and similar.

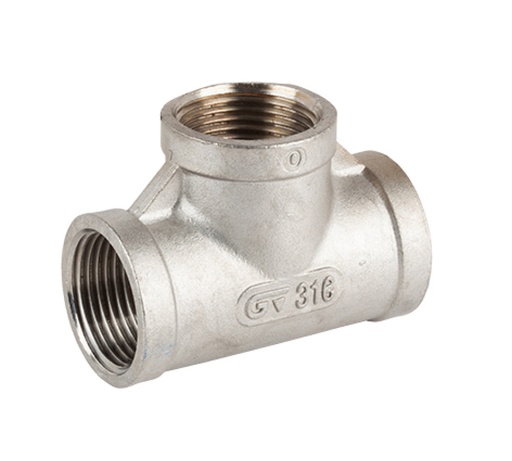

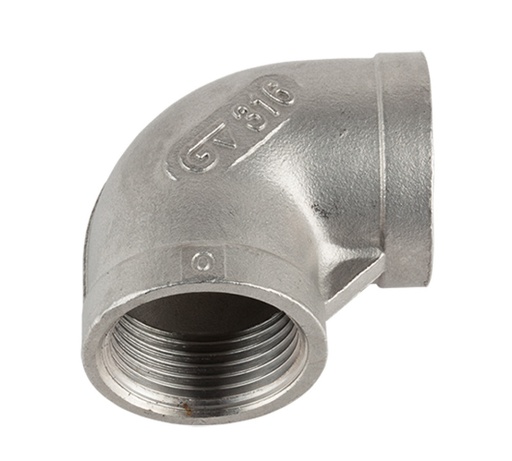

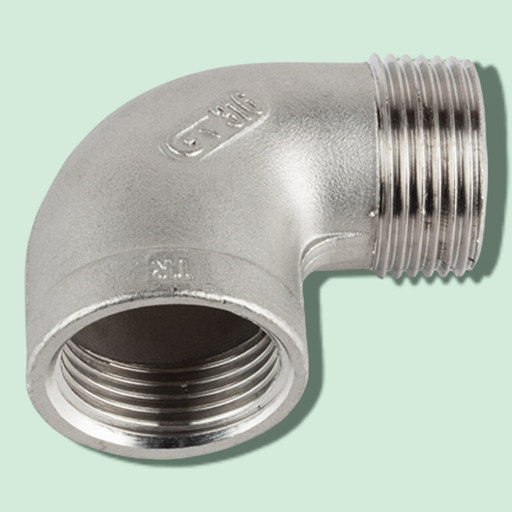

Made of AISI 316 (Casting)
Thread according to ISO 7-1 (EN 10226-1) Std.
Dimensions according to ISO 4144 Std
Max. working pressure 20 Bar ( S-150 ).
Temperature ratings –20 ºC to 220 ºC.

Given the wide range of stainless steel fitting that exists in the global market, the
manufacturers have opted to Standardize the range based on ISO 4144.
The manufacturer has implemented all requirements of the International Standard ISO 4144, having present in the design process of a fitting in stainless steel pipes used for the conveyance of steam, air, gas, water, oil, etc. normalized with respect to the basic range, size, thickness and hence its weight.

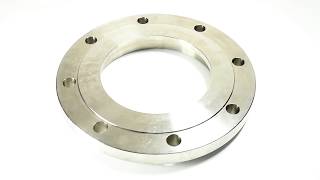

PN16 plate flange conforming to EN 1092-1
Made of black (self-colour) S235JR mild steel plate
Slip-on welding flange for fillet welding to steel pipe or tube
Raised sealing face provides a stronger seal between flanges
Flange diameter x thickness:
PCD (Pitch/bolt circle diameter):
* x M** bolt holes
Maximum operating pressure: 16 bar (PN16) at up to 200°C
Operating temperature range: -10°C - 300°C
Note: Operating pressure/temperature should not exceed the rating of the connected pipe

3.1 test certification available upon request

PN16 plate flange conforming to EN 1092-1
Made of black (self-colour) S235JR mild steel plate
Slip-on welding flange for fillet welding to steel pipe or tube
Raised sealing face provides a stronger seal between flanges
Flange diameter x thickness: 165mm x 20mm
PCD (Pitch/bolt circle diameter): 125mm
4 x M16 bolt holes
Maximum operating pressure: 16 bar (PN16) at up to 200°C
Operating temperature range: -10°C - 300°C
Note: Operating pressure/temperature should not exceed the rating of the connected pipe

3.1 test certification available upon request
